Reversing Assistant

Compatible with: picoScan100

When reversing a vehicle, objects behind it can be difficult to see and the available stopping distance decreases quickly. A LiDAR sensor can monitor this area and provide an immediate warning: the closer the nearest obstacle is, the faster the sensor LEDs flash.

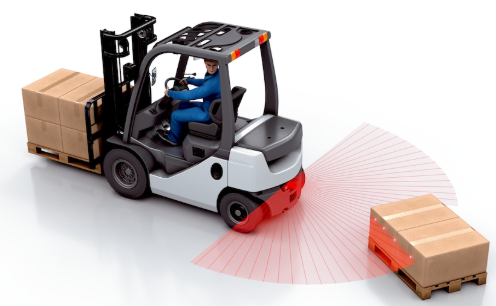

The LiDAR monitors the reversing area. A shorter distance to the nearest obstacle produces a faster warning flash.

Before You Start

• Connect the picoScan150 and the development computer to the same network.
• Mount the sensor so its field of view covers the monitored reversing area.
• Build and install sick_perception_sdk with the picoScan100 examples.
• Change receiverAddress if the computer does not use 192.168.0.100.
• This minimal example uses the default Service password servicelevel.

Minimal Example

This example is based on the SDK's UDP streaming example. The point-cloud callback only calculates the flash period; the main loop performs the REST writes so scan reception is not blocked by an HTTP request.

The warning uses the radial range supplied by the scanner in the Compact scan data. Every point in the received frame is considered.

Expand to view the complete C++ example

#include <sick_perception_sdk/compact_format/PointCloud/UnorganizedPointCloud.hpp>
#include <sick_perception_sdk/drivers/picoScan100/PicoScan100Driver.hpp>
#include <sick_perception_sdk/sensor_configuration/HttpClient/httplib_client/HttpClient.hpp>
#include <sick_perception_sdk/sensor_configuration/picoScan150/PicoScan150Configurator.hpp>

#include <atomic>
#include <algorithm>
#include <chrono>
#include <csignal>
#include <cstdint>
#include <limits>
#include <memory>
#include <thread>

// The signal handler changes this flag when the user presses Ctrl+C.
std::atomic<bool> running {true};

int main()
{
  // Change these addresses if the sensor or computer uses another subnet.
  constexpr char sensorAddress[] = "192.168.0.1";
  sick::IpV4Address receiverAddress {"192.168.0.100"};
  constexpr std::uint16_t scanPort = 2115;

  auto const httpClient =
    std::make_shared<sick::httplib_client::HttpClient>(sensorAddress, 80);
  sick::picoScan150::v2_3_3::Configurator configurator(
    httpClient, sick::UserLevel::Service, "servicelevel");

  configurator.enableScanDataStreamingCompactUdp(receiverAddress, scanPort);

  // The scan callback writes these values while the main loop reads them.
  std::atomic<int> flashPeriodMs {0};
  std::atomic<std::chrono::steady_clock::time_point> lastFrame {
    std::chrono::steady_clock::time_point {}};

  // Request the scanner-provided radial range for every point.
  sick::point_cloud::PointCloudConfiguration pointCloudConfig;
  pointCloudConfig.fields.enableSpherical = true;

  sick::picoScan100::Driver driver;
  driver.scanDataReceiver()
    .setup(scanPort)
    .setOnNewFrameCallback(
      [&](sick::point_cloud::UnorganizedPointCloud const& cloud) {
        // Find the closest valid radial range in the complete scan frame.
        float nearest = std::numeric_limits<float>::infinity();
        for (std::size_t i = 0; i < cloud.numberOfPoints(); ++i)
        {
          nearest = std::min(nearest, cloud.getRange(i));
        }

        // Store one full LED on/off period for the selected warning level.
        flashPeriodMs =
          nearest <= 0.5F ? 333 :
          nearest <= 2.0F ? 500 :
          nearest < std::numeric_limits<float>::infinity() ? 2000 : 0;
        lastFrame = std::chrono::steady_clock::now();
      },
      pointCloudConfig);
  driver.run();

  std::signal(SIGINT, [](int) { running = false; });
  bool ledOn = false;
  while (running)
  {
    // Treat missing scan data as "no obstacle" after 500 ms.
    bool const scanIsCurrent =
      std::chrono::steady_clock::now() - lastFrame.load() <=
      std::chrono::milliseconds(500);
    int const period = scanIsCurrent ? flashPeriodMs.load() : 0;

    if (period == 0)
    {
      if (ledOn)
      {
        configurator.setLEDEnable(false);
        ledOn = false;
      }
      std::this_thread::sleep_for(std::chrono::milliseconds(50));
      continue;
    }

    // Toggling after half a period produces the requested flash frequency.
    ledOn = !ledOn;
    configurator.setLEDEnable(ledOn);
    std::this_thread::sleep_for(std::chrono::milliseconds(period / 2));
  }

  configurator.setLEDEnable(true);
}

Add the source as another picoScan100 example target and link it with sick_perception_sdk::drivers and sick_perception_sdk::sensor_configuration, like the SDK's data_streaming_udp example. Stop it with Ctrl+C; the final call enables the LEDs again, which is their default state.

Expected Behavior

If no scan frame arrives for 500 ms, the scan is treated as stale and the LEDs are switched off.

Expected Behavior: nearest point, flash frequency, and result.

Nearest point	Flash frequency	Result
No obstacle or stale scan	Off	LEDs stay off
0 m to 0.5 m	3 Hz	Fast warning
More than 0.5 m to 2 m	2 Hz	Medium warning
More than 2 m	0.5 Hz	Slow warning

Move a test object through the sensor's field of view and check that the reported behavior changes monotonically: every smaller distance must produce the same or a shorter period. Test only in a controlled area; this example is a warning aid, not a safety function.

Optional Digital Output

The same ledOn value can be sent to POST /api/SetOutput at the same cadence. First configure that output's source as SOPAS command, then call the SDK's setOutput() method with the output number and value. Do not use OutputState for this: that endpoint only reads the current output states.
