Bulk Scan¶

Compatible with: LRS4000 picoScan100

LiDAR can measure the profile of woodchips or other bulk raw materials on conveyor belts. Mounted above the belt, the sensor continuously scans the material surface. The application determines material height relative to the empty belt.

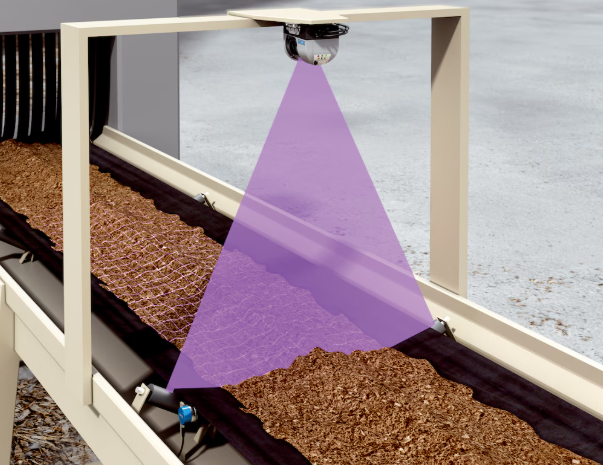

LiDAR mounted above a conveyor belt carrying woodchips, with the scan area highlighted in purple

Example woodchip conveyor installation. The highlighted scan area covers the material profile across the belt.

Example Solution¶

The following video demonstrates perpendicular-distance measurement as a starting point for measuring material height. See Perpendicular Distance Measurement for configuration details.

Perpendicular-distance measurement demonstration for the woodchip example.
