Backup & restore

Compatible with: picoScan100

The configuration file feature archives a complete device configuration as a single file. It can be used interactively in the device GUI or headlessly through the REST API. Encryption is optional. Use it to clone a configuration across identical sensors, roll back to a known-good state, or exchange configurations between devices.

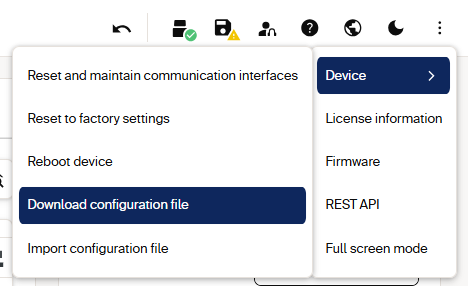

In the device GUI, open Device and select Download configuration file to access the backup.

Device menu with Download configuration file selected

Access the configuration backup from the Device menu.

The raw file endpoints require a session token in the X-Session-Token header: this prevents cross-site request forgery on the binary transfer.

Endpoints

Action Method / URL Auth
Create a session token POST /api/CreateSessionToken Challenge-response (or Basic Auth on some firmware)
Trigger backup creation (async) POST /api/CreateParameterBackup Challenge-response
Download the file GET /api/parameterbackup Session token
Upload a file PUT /api/parameterbackup Session token
Apply an uploaded file (async) POST /api/RestoreParameterBackup Challenge-response

The CreateParameterBackup / RestoreParameterBackup payloads can carry a passphrase to encrypt the file:

{ "data": { "Passphrase": "your-passphrase" } }

The passphrase is independent of the login password. If encryption is enabled, supply the same passphrase when restoring.

Download a configuration

CreateParameterBackup and RestoreParameterBackup are fire-and-return: the HTTP response only confirms the request was accepted; the work happens on the device afterwards. Wait at least 1 second before the next step.

  1. Get a session token: POST /api/CreateSessionToken at Service level; store data.token.
  2. Trigger creation: POST /api/CreateParameterBackup, optionally with a passphrase. Fetch a fresh challenge for this call (the previous nonce is consumed).
  3. Wait around 1 second for the device to finish generating the file.
  4. Download: GET /api/parameterbackup with the token header. This returns the binary file (~86 KB). Without the header, you get HTTP 403.

1. Create a session token

POST /api/CreateSessionToken
{ "header": { ... }, }

The response contains the session token:

{ "data": { "token": "dKVwNYUkHsHS..." } }

2. Trigger backup creation

Fetch a fresh challenge for this asynchronous request:

POST /api/CreateParameterBackup
{ "header": { ... }, "data": { "Passphrase": "test" } }

3. Download the backup

Wait approximately 1 second, then download the binary backup file:

GET /api/parameterbackup HTTP/1.1
Host: 192.168.0.1
X-Session-Token: dKVwNYUkHsHS...

The response is HTTP 200 with the binary backup file.

Import (restore) a configuration

  1. Get a session token (as above).

  2. Upload the file with PUT /api/parameterbackup, the token header and the binary body:

    PUT /api/parameterbackup HTTP/1.1
Host: 192.168.0.1
X-Session-Token: dKVwNYUkHsHS...
Content-Type: application/octet-stream

<binary backup content>

  3. Activate the restored parameters (challenge-response), supplying the same passphrase:

    POST /api/RestoreParameterBackup
{ "header": { ... }, "data": { "Passphrase": "test" } }

  4. Wait around 1 second, then optionally persist:

    POST /api/PersistParameters   { "header": { ... } }

The device reboots to apply a full restore. Confirm afterwards that the checksums and key parameters match your expectation.

Pseudocode

Download

Create a session token:

POST /api/CreateSessionToken

Trigger the asynchronous backup:

POST /api/CreateParameterBackup

Wait approximately 1 second, then download and save the response:

GET /api/parameterbackup HTTP/1.1
X-Session-Token: <token>

Import

Upload the backup file:

PUT /api/parameterbackup HTTP/1.1
X-Session-Token: <token>
Content-Type: application/octet-stream

<binary backup file>

Apply the uploaded parameters, then persist them:

POST /api/RestoreParameterBackup
POST /api/PersistParameters

Error handling

Symptom Cause Fix
HTTP 403 on GET/PUT parameterbackup Missing or expired session token Create a fresh token; add the X-Session-Token header
Download returns an empty/partial file Read before the async create finished Wait ≥ 1 s (or poll) after CreateParameterBackup
Restore rejected Wrong passphrase, or a backup from a different device type Use the same passphrase; restore only onto a matching model
401 on Create*/Restore* Stale nonce or user level not enabled Fetch a new challenge per request; enable the user level

A backup restored onto many identical sensors is the fastest way to roll out a validated configuration, including the field evaluation groups that can only be created via the UI or a restore, then modified over REST. Snapshot a golden device, then push its backup to the fleet.

Firmware update Session-token pattern; Integrity & checksums confirms a restore changed only what you expected.
