Vision Starter Kit Overview
Welcome to the Vision Starter Kit documentation.
The Vision Starter Kit helps you get started with image-based sensor applications and AI-supported vision examples. It includes an industrial vision sensor, sample code, configurations and documentation for educational and demonstration purposes.
Key Features
- High-resolution image capture
- AI-supported object detection and classification
- Easy-to-use configuration with SICK Nova
- Example objects and sample projects for a quick start
What can you do with it?
With the Vision Starter Kit, you can explore typical vision applications such as:
- object detection
- classification tasks
- sorting examples
- quality control scenarios
- AI-based image processing demos
What is included?
The Vision Starter Kit contains the following components:
| # | Article Description | Quantity | Part No. |
|---|---|---|---|
| 1 | InspectorP61x + software SICK Nova | 1 | 1432322 |
| 2 | Mounting plate | 1 | 1131603 |
| 3 | Mounting frame (unassembled) with screw and washer | 1 |
3533635 3173225 3014724 |
| 4 | Hex keys | 1 each |
3533955 3533965 3533975 |
| 5 | Power supply | 1 | 6075717 |
| 6 | Network cable | 1 | 21128447 |
| 7 | Network adapter | 1 | 60834268 |
| 8 | Hex nuts – Example objects for detection or classification | 2 each |
3014205 3043919 |
| 9 | Screws – Example objects for detection or classification | 2 each |
3033885 3130491 |
| 10 | Transport box | 1 | 352372 |
| 11 | Focus adjustment tool | 1 | 2111580 |
| 12 | Focus adjustment tool small | 1 | 2117576 |
| 13 | Quickstart Guide | 1 | 8030241 |

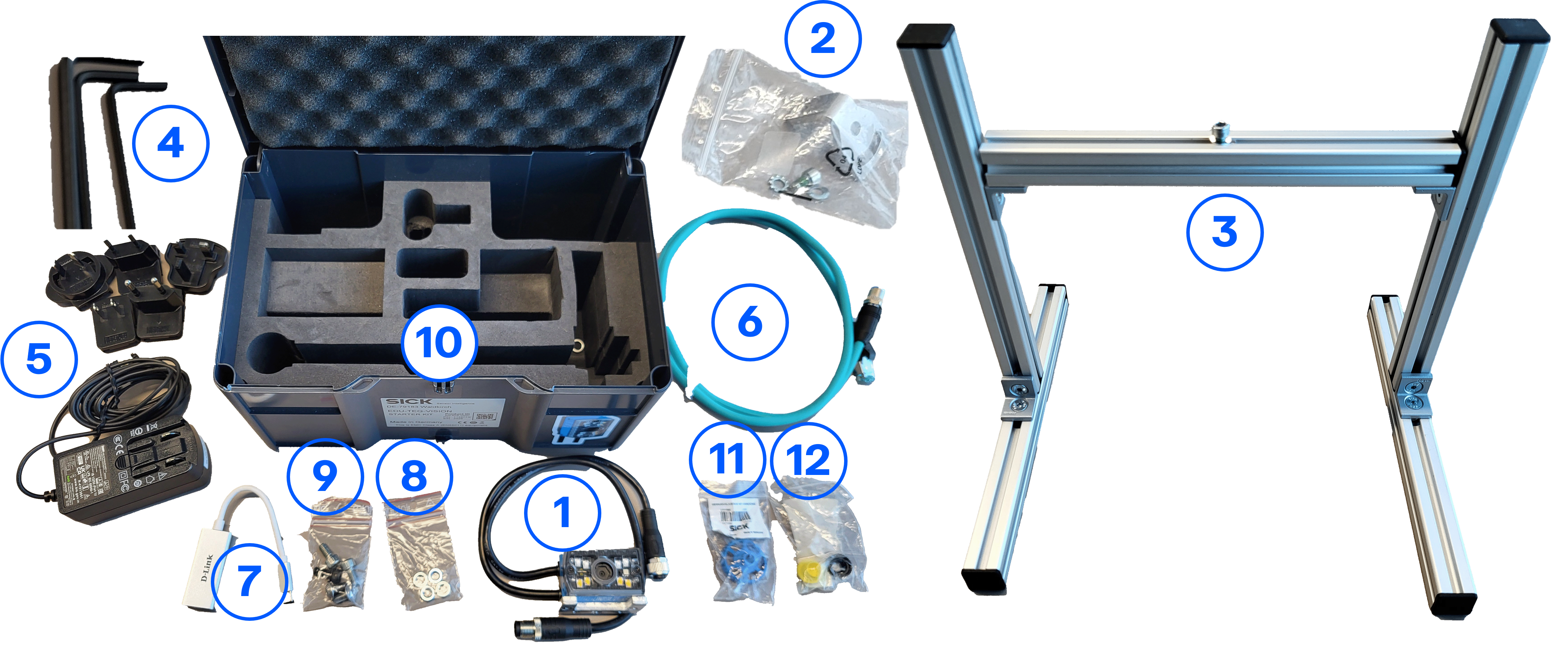

Show component overview image
Recommended next step
Start with the setup guide to connect the hardware and run your first demo.
Educational use
The Starter Kits are intended for educational and demonstration purposes only and must not be used in production environments.
