IO-Link Connectivity Starter Kit Overview
Welcome to the IO-Link Connectivity Starter Kit documentation.
The IO-Link Connectivity Starter Kit helps you get started with IO-Link communication, smart sensors and device integration. It includes a SIG300 IO-Link Master, different sensor technologies, accessories and documentation for educational and demonstration purposes.
IO-Link transforms sensors and actuators into smart, bidirectional communication devices. This enables access to process data, device parameters and diagnostic information and provides a practical introduction to modern industrial connectivity.
Key Features
- Communication with multiple IO-Link sensors
- Access to process data, parameters and diagnostic information
- Different sensor technologies for practical comparison
- Simple configuration through the SIG300 user interface
- Easy integration into applications and automation examples
- Plug-and-play setup for first IO-Link experiments
What can you do with it?
With the IO-Link Connectivity Starter Kit, you can explore typical IO-Link applications such as:
- connecting and identifying IO-Link devices
- comparing different sensor technologies
- reading process data
- changing device parameters
- displaying diagnostic information
- combining data from multiple sensors
- creating simple feedback and automation applications
- integrating sensor data into external software
Optional Mounting Kit
The IO-Link Connectivity Starter Kit can be combined with a separate mounting kit.
The mounting kit provides a suitable mounting frame and brackets for assembling a stable demonstration and training setup.
For assembly instructions, use the Mounting Frame Setup page.
What is included?
The IO-Link Connectivity Starter Kit contains the following components:
| # | Article Description | Quantity | Part No. |
|---|---|---|---|
| 1 | SIG300 network device | 1 | 1131014 |
| 2 | W10 photoelectric sensor | 1 | 1133547 |
| 3 | IMC30 inductive proximity sensor | 1 | 1079301 |
| 4 | UC12 ultrasonic distance sensor | 1 | 6077702 |
| 5 | Power supply | 1 | 6089529 |
| 6 | IO-Link cable | 3 | 2096007 |
| 7 | USB-C cable | 1 | 2119989 |
| 8 | Connector | 2 | 6022083 |
| 9 |
Green and red LEDs Fitted into the connector |
2 |
6092050 6092051 |
| 10 | Transport box | 1 | 5352759 |
| 11 | Quickstart Guide | 1 | 8031013 |

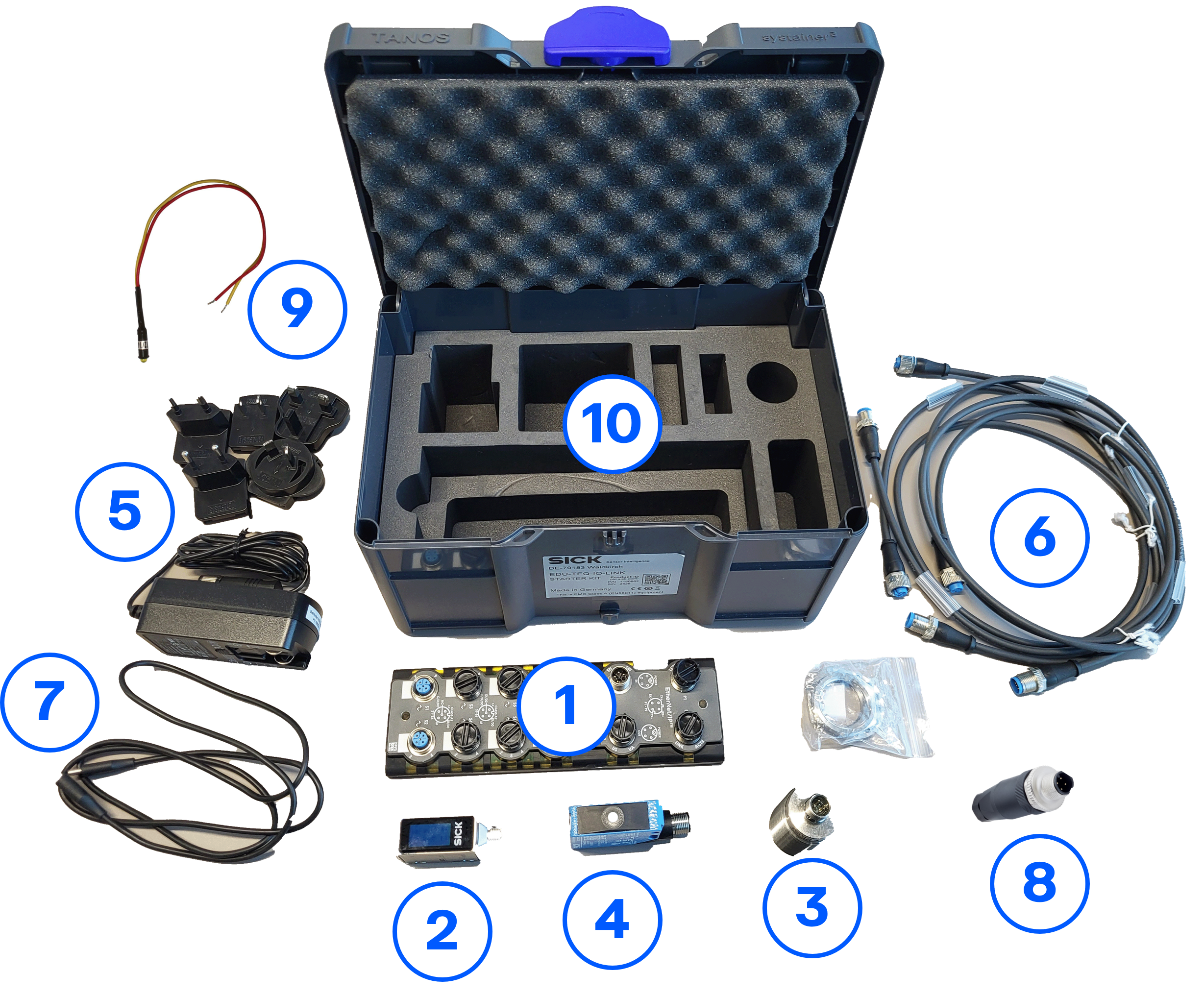

Show component overview image
Start with the Getting Started guide to connect the SIG300, attach the IO-Link devices and open the device user interface.
Educational use
The Starter Kits are intended for educational and demonstration purposes only and must not be used in production environments.
