IO-Link Connectivity Starter Kit Overview
Welcome to the IO-Link Connectivity Starter Kit!
Please note that the starter kits are intended for educational purposes only and must not be used in production environments.
The IO-Link Starter Kit provides an introduction to working with IO-Link sensors and integrating them into machines or systems. Different sensor technologies can be tested and compared.
IO-Link is becoming increasingly important because it transforms simple sensors and actuators into smart, bidirectional communication devices, enabling real-time diagnostics, easy integration, and future-proof connectivity for Industry 4.0. Find out how to use it for your project!
Don’t have an IO-Link Starter Kit yet? Purchase yours here!

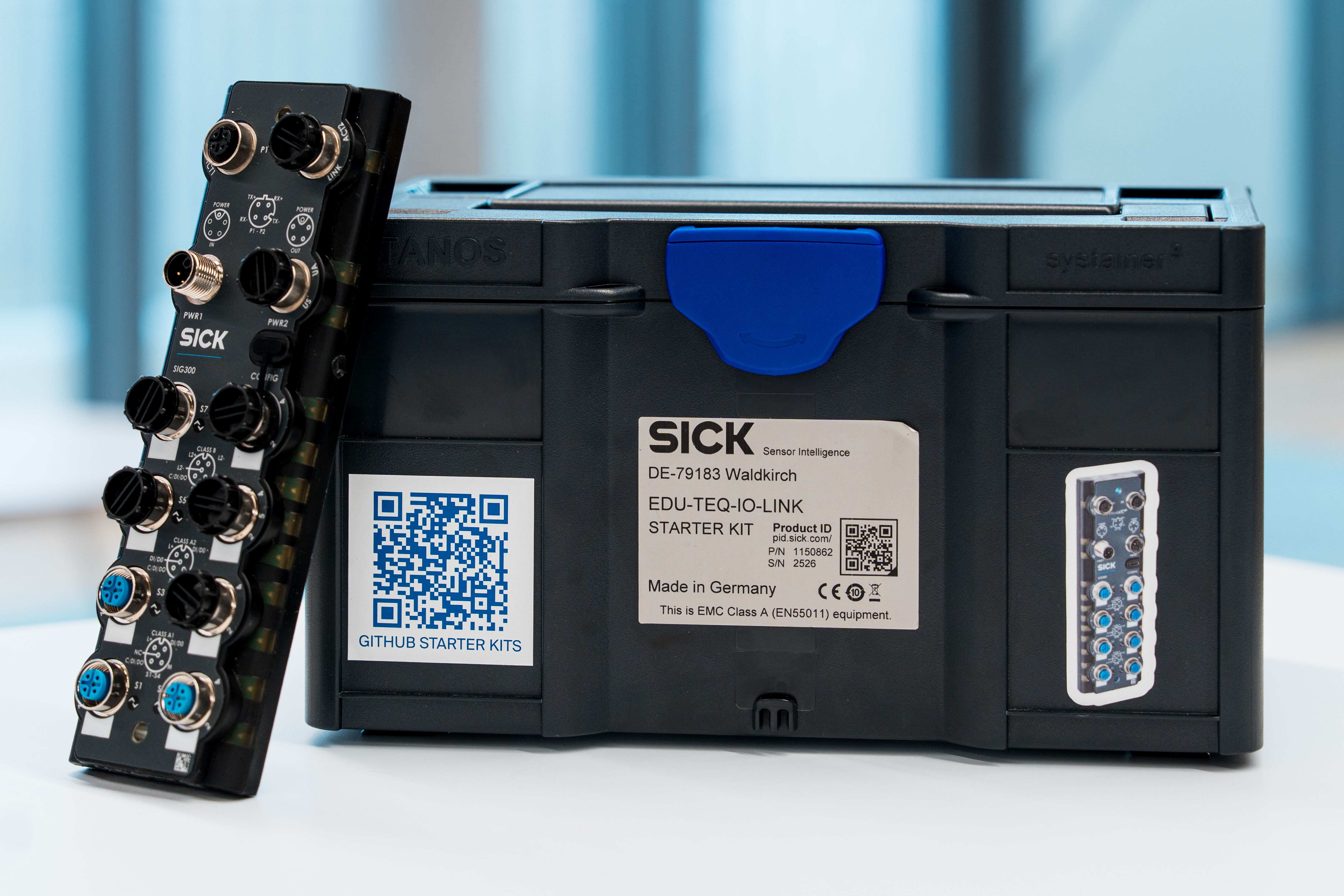

IO-Link Connectivity Starter Kit
You can combine the IO-Link Connectivity Starter Kit with a special Mounting Kit with suitable mounting frame and brackets.
Key Features
- Seamless IO-Link communication
- Simple configuration with SOPAS Air or compatible tools
- Easy integration into various automation systems
- Supports parameterization and diagnostics
- Plug-and-play setup
Hardware

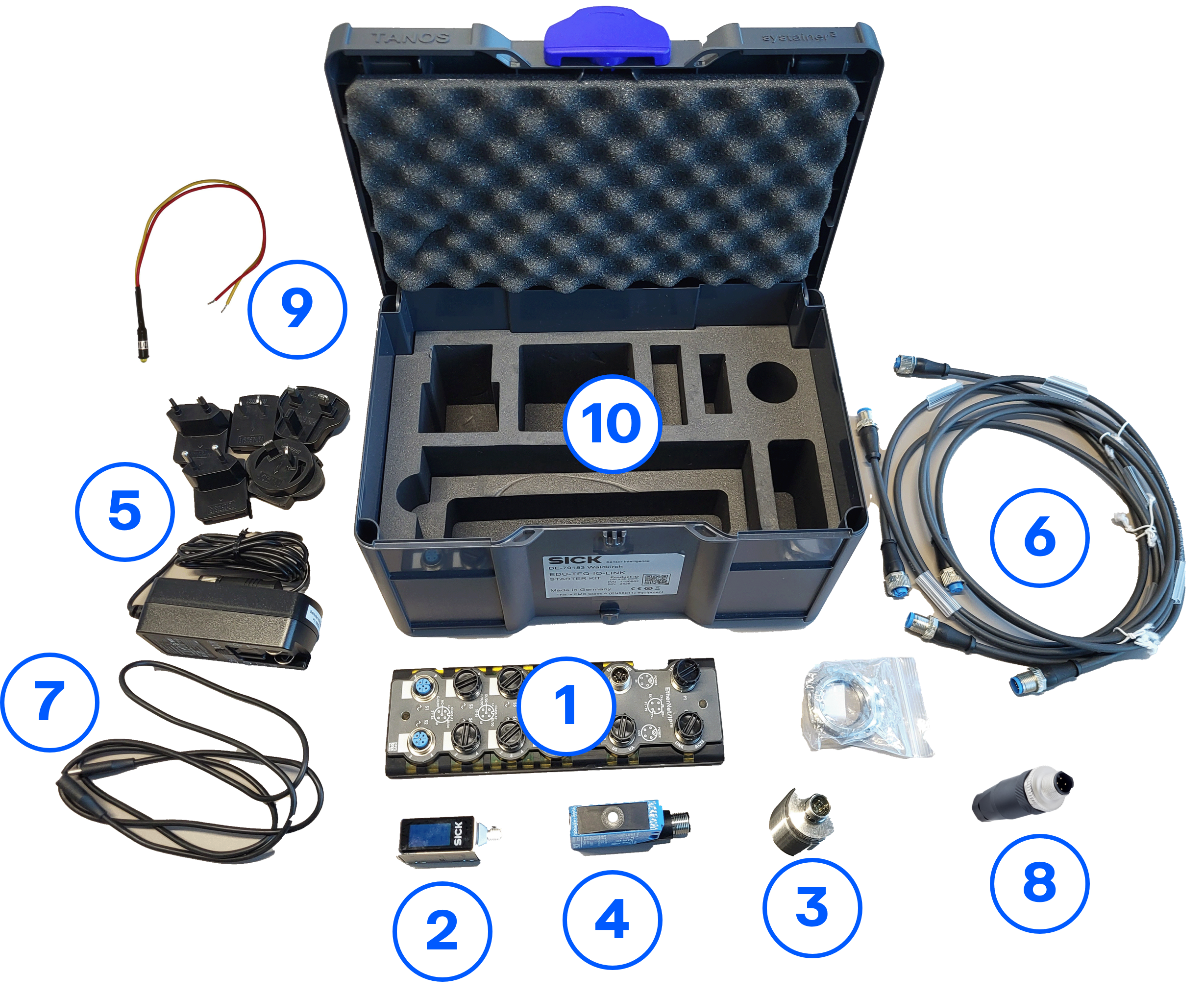

The IO-Link Connectivity Starter Kit contains the following parts:
| # | Article Description | Quantity | Part No. |
|---|---|---|---|
| 1 | SIG300 network device | 1 | 1131014 |
| 2 | W10 photoelectric sensor | 1 | 1133547 |
| 3 | IMC30 inductive proximity sensor | 1 | 1079301 |
| 4 | UC12 ultrasonic distance sensor | 1 | 6077702 |
| 5 | Power supply | 1 | 6089529 |
| 6 | IO-Link cable | 3 | 2096007 |
| 7 | USB-C cable | 1 | 2119989 |
| 8 | Connector | 2 | 6022083 |
| 9 | LEDs green and red (fitted into the plug) |
2 |
6092050 6092051 |
| 10 | Transport box | 1 | 5352759 |
| 11 | Quickstart Guide | 1 | 8031013 |
Explore the Getting Started Guide and advanced sections for more details.
